What Dimensions Mean for Arrays

What Dimensions Mean for Arrays

Before we can solve harder array problems, we need to be clear about one small but important idea: what is a "dimension"?

A dimension is just an independent direction

Think of a dimension as one direction you can move in. Each direction is independent of the others — moving in one does not affect the others.

• Anything you draw on a flat sheet of paper has two dimensions: width (left–right) and height (up–down).
• The real world adds a third dimension: depth (near–far). That is why we can pick up an object, walk around it, and see it has thickness.

We live in a three-dimensional world, so picturing up to three dimensions feels natural.

In math, there is a precise way to say this: the dimension of an object is the smallest number of coordinates you need to point to any single spot inside it. On a line you need 1 number. On a flat sheet you need 2 numbers. In a solid block you need 3 numbers.

How this maps onto arrays

Arrays follow the exact same idea. The dimension of an array is how many index numbers you must give to reach one single value.

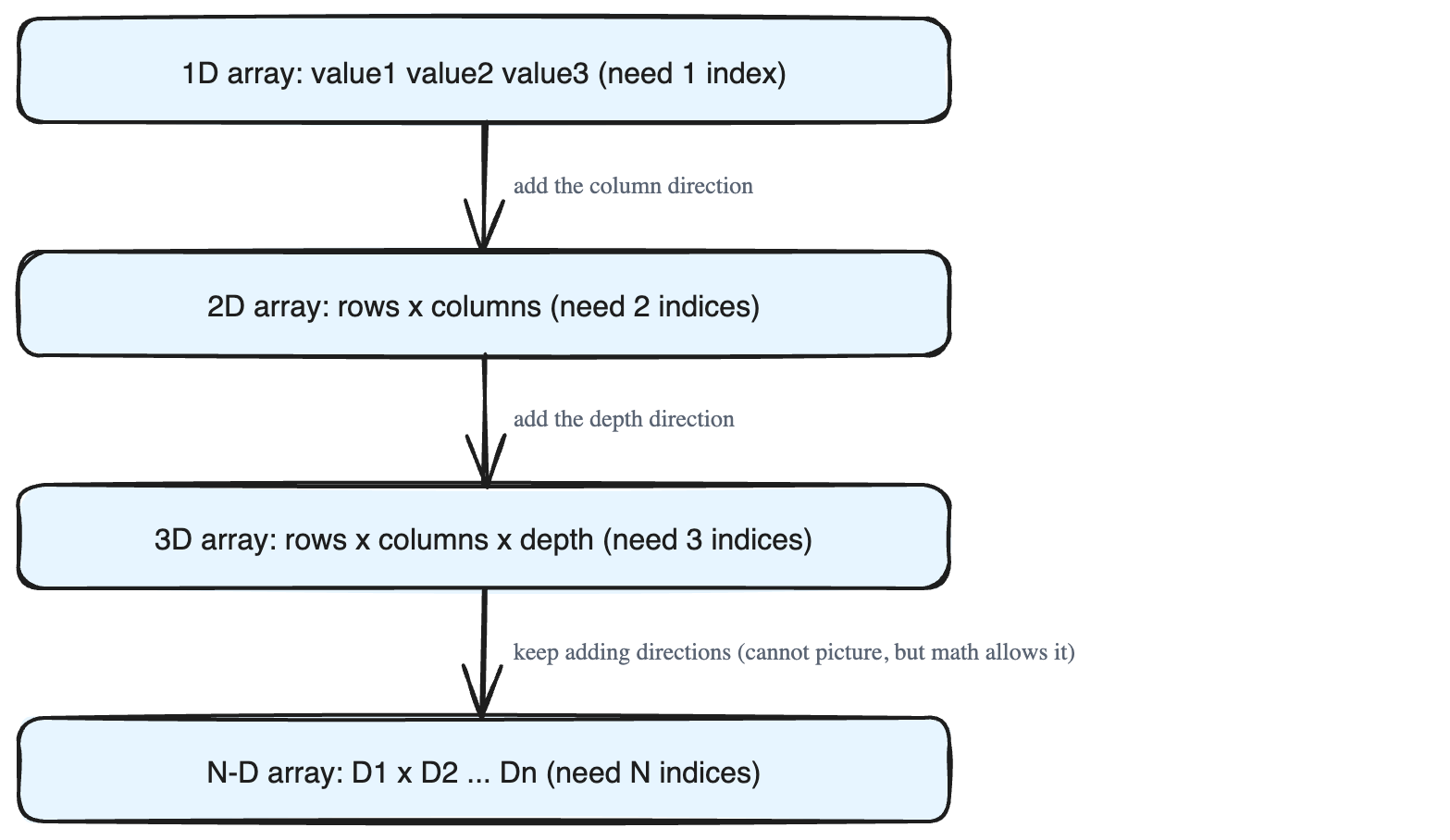

• Single-dimension array — a simple row of values like value1 value2 value3. You need one index to pick a value. Think of it as a single line.
• Two-dimensional array — values arranged in rows and columns, like a table or a grid on paper. You need two indices: one for the row, one for the column.
• Three-dimensional array — several of those grids stacked behind one another, adding depth. You need three indices: row, column, and depth. Picture a stack of pages, where each page is a 2D grid.

So for arrays, the three everyday directions get the names row, column, and depth.

Going beyond three dimensions

We cannot *picture* anything past three dimensions — but math has no such limit. We can create and work with arrays that have any number of dimensions. When an array has N dimensions, we call it an N-dimensional array or a multidimensional array. These two terms mean exactly the same thing.

Once we pass three dimensions, the friendly words *row, column, depth* run out. So we switch to a clean mathematical description instead. An N-dimensional array has sizes for each dimension, written as D1, D2, D3 ... Dn, where Di is the size of the i-th dimension. Its total shape is:

(D1 x D2 x D3 ... Dn)

Higher-to-lower order: an easy trap to remember

Here is the part that surprises beginners. In math we naturally write the sizes from lower to higher: D1 x D2 ... Dn.

But almost all programming languages write them the other way — from higher to lower:

Dn x Dn-1 x Dn-2 ... D1

So when you actually *define* an array in code, the dimensions are listed as:

array [Dn][Dn-1] ..... [D1]

The same higher-to-lower order is used when you access one item. If the coordinate of the item is (I1, I2, I3, ... In), you read it in code as:

array [In][In-1] ..... [I1]

This higher-to-lower notation is also what the computer uses internally to calculate the base address of an item — the exact memory location where that value sits.

The one thing to take away

A dimension = one index you must supply. The number of indices is the number of dimensions. And remember: math lists dimensions low→high, but code lists them high→low.
